Pegas - GENFROST UK

Pegas

Available in various colour options (4-6 weeks)

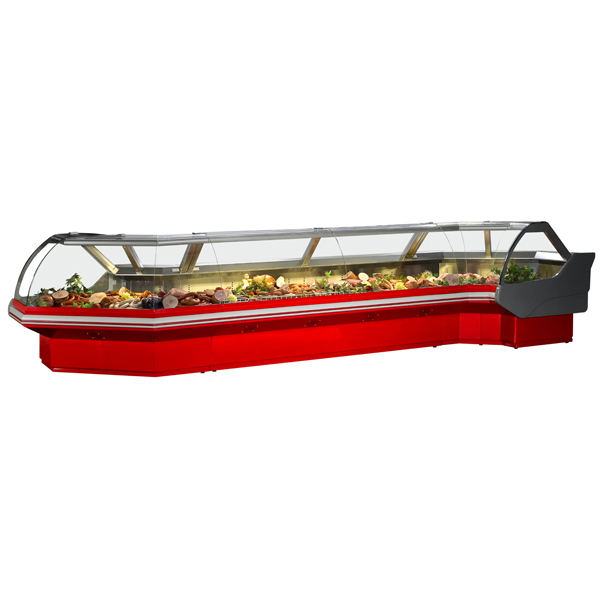

The Pegas Fan Assisted Refrigerated Serveover counter by ES SYSTEM K is an excellent traditional deep deck serveover display, ideal for Deli’s and an ideal fresh meat counter for butchers it also has a practial s/steel rear work shelf, the front glass of the serveover is hydraulic and curved to give an impressive finish. We have many options such as meat lighting and also the ability to multiplex the counters to creat longer counter lengths as well as L Shape Counter runs, we can even fit low speed fans to prevent the fresh meat from drying. Take a look at our other Remote Serveovers.

STANDARD FEATURES:
> Temperature Range -1/+5°C
> Hydraulic Curved Glass
> Two Rows of Display Lighting
> Double Glazed Side Glass
> PVC Bumper
> S/Steel Worktop
> Expansion Valve
> Electric Defrosting
> S/Steel & Display Deck
> Pedestal Base or Full Base Option
> Corner Glass Fixed Shut
> Also Available in Low Glass (Self Service)
> Excludes Condensing Unit

TECHNICAL SPECIFICATIONS

			DIMENSIONS
MODEL	DESCRIPTION	W	D	H	PRICE
PEG125	Serveover	1250mm	1265mm	1190mm	P.O.R	4-6 weeks
PEG187	Serveover	1875mm	1265mm	1190mm	P.O.R	4-6 weeks
PEG250	Serveover	2500mm	1265mm	1190mm	P.O.R	4-6 weeks
PEG375	Serveover	3750mm	1265mm	1190mm	P.O.R	4-6 weeks
PEG45I	Internal Corner 45º	see schematics	see schematics	1190mm	P.O.R	4-6 weeks
PEG45E	External Corner 45º	see schematics	see schematics	1190mm	P.O.R	4-6 weeks
PEG90I	Internal Corner 90º	see schematics	see schematics	1190mm	P.O.R	4-6 weeks
PEG90E	External Corner 90º	see schematics	see schematics	1190mm	P.O.R	4-6 weeks
PEG/CT	Cash table	1000mm	-	890mm	P.O.R	4-6 weeks
PEG/SIDE	Side cover including glass	ORDER ENDS SEPARATELY	-	–	P.O.R	4-6 weeks
PEG/MSC	Side cover with Mirrored glass	ORDER ENDS SEPARATELY	–	–	P.O.R	4-6 weeks

*Width excludes Side Covers (Order separately) Each Side Cover will add 50mm to the width of the counter*

Optional Extras

(more available, call for full list)

PEG/LDIV

Low Perspex Divider – £55

PEG/HDIV

High Perspex Divider – £68

PEG/SDIV

Fixed Divider – £165

PEG/MTL

Meat Lighting – POA

PEG/LOW

Low Glass Models – POA

PEG/COL

Custom Colour Paint – £75/m

R/CONTROLLER

Electronic Controller – £88

PEG/SCS

S/Steel Scale Shelf – £105

PEG/CHP

Chopping Block – £105

PEG/EXP

2 Level Exposition/m – POA

PEG/GEX

2 Level GN Well Exposition – £84

PEG/INS

Intermediate Glass Shelf/m – £84

R/SOLENOID

Pre-Fitted Solenoid Valve – £140

PEG/HTD

Heated Display Deck & Heated Lamp – £440/m

PEG/BMR

Bains Marie Unit & Heated Lamps – POA

PEG/FOI

Fish on Ice Bed – £320/m

Click to enlarge

Previous product

Tucana

Back to products

Next product

Pegas Spherical

Category: Serveover Counters Tag: Remote Fan Assisted Serveover

Description
accessories
SCHEMATICS

Description

			DIMENSIONS
MODEL	DESCRIPTION	W	D	H	PRICE
PEG125	Serveover	1250mm	1265mm	1190mm	P.O.R	4-6 weeks
PEG187	Serveover	1875mm	1265mm	1190mm	P.O.R	4-6 weeks
PEG250	Serveover	2500mm	1265mm	1190mm	P.O.R	4-6 weeks
PEG375	Serveover	3750mm	1265mm	1190mm	P.O.R	4-6 weeks
PEG45I	Internal Corner 45º	see schematics	see schematics	1190mm	P.O.R	4-6 weeks
PEG45E	External Corner 45º	see schematics	see schematics	1190mm	P.O.R	4-6 weeks
PEG90I	Internal Corner 90º	see schematics	see schematics	1190mm	P.O.R	4-6 weeks
PEG90E	External Corner 90º	see schematics	see schematics	1190mm	P.O.R	4-6 weeks
PEG/CT	Cash table	1000mm	-	890mm	P.O.R	4-6 weeks
PEG/SIDE	Side cover including glass	ORDER ENDS SEPARATELY	-	–	P.O.R	4-6 weeks
PEG/MSC	Side cover with Mirrored glass	ORDER ENDS SEPARATELY	–	–	P.O.R	4-6 weeks

accessories

Optional Extras	(more available, call for full list)
PEG/LDIV	Low Perspex Divider – £55
PEG/HDIV	High Perspex Divider – £68
PEG/SDIV	Fixed Divider – £165
PEG/MTL	Meat Lighting – POA
PEG/LOW	Low Glass Models – POA
PEG/COL	Custom Colour Paint – £75/m
R/CONTROLLER	Electronic Controller – £88
PEG/SCS	S/Steel Scale Shelf – £105
PEG/CHP	Chopping Block – £105
PEG/EXP	2 Level Exposition/m – POA
PEG/GEX	2 Level GN Well Exposition – £84
PEG/INS	Intermediate Glass Shelf/m – £84
R/SOLENOID	Pre-Fitted Solenoid Valve – £140
PEG/HTD	Heated Display Deck & Heated Lamp – £440/m
PEG/BMR	Bains Marie Unit & Heated Lamps – POA
PEG/FOI	Fish on Ice Bed – £320/m

SCHEMATICS

DIMENSIONS VIEW / DOWNLOAD
